    Transform Steel Tubing into Hydraulic Cylinder Tubes

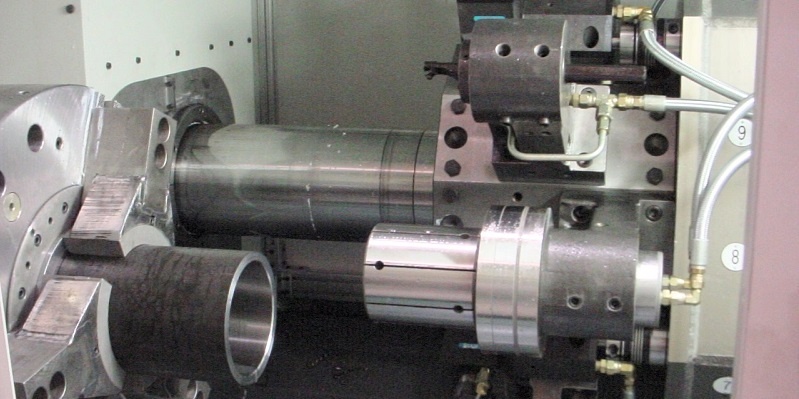

    When your job requires converting full-length 1026-DOM or other steel tubing into finished hydraulic cylinder tubes and efficiency matters, you want a Bardons & Oliver 2-axis tube system. These systems do exactly what you need in one fully automated step. The automatic loader will handle lengths up to 40 feet long.






    The 2-axis hydraulic cylinder tube systems:

    • Handle diameters from 1.125" to 12"
    • Typically process incoming tubes 24' to 32' in length
    • Process welded, tie-rod and telescoping cylinder tubes

    The finished machining configurations meet any application and include I.D. threads on one end, O.D. threads on one or both ends, chamfer weld preps, J-groove weld preps, I.D. and O.D. snap ring grooves, lock-wire grooves, port holes of any configuration, bleeder holes and manifold porting.

    Port, bleeder and manifold ports:

    • Typically range from 0.06" to 1.5"
    • Can be located anywhere along the length of the cylinder tube and in any radial location



    Get custom engineered solutions for your exact applications.

    Our employee-owners design, deliver and support custom engineered solutions to the most complex manufacturing challenges.
