Equipment List

Accurate and Efficient Equipment to Serve Your Contract Machining Needs

When you work with Bardons & Oliver, you work with a full-service Machine Tool and Contract Machining company. Our equipment provides the capabilities you need and our services are delivered in spec and on time.

Machining Centers

CNC - Fermat WFT 13
Table Type Horizontal Boring Mill
120" X 78" X 60"
Live Spindle with W-Axis Stroke of 29"
63" X 71" Contouring Rotary Table
40-Position Tool Changer
Scales, Spindle Probe
30,000 lb. Table Capacity

CNC - Cincinnati Horizontal Machining Center
100" X 60" X 36"
360-Position B Axis
30-Position Tool Changer
Scales

CNC - K&T Orion-2300 Horizontal Machining Center
98" X 60" X 48"
150-Position Tool Changer
Probes, Scales
Contouring B-Axis
4-Pallet Shuttle
48" Square Pallets
12,000 lb. Capacity

CNC - K&T Orion-2300 (Qty - 3) Horizontal Machining Center
60” X 60" X 48”
150-Position Tool Changer
Probes, Scales
4-Pallet Shuttle
48" Square Pallets
10,000 lb. Capacity

CNC - Cincinnati T-40 Horizontal Machining Center
60" X 60" X 48"
170-Position Tool Changer
Probes, Scales
Contouring B-Axis
6-Pallet Shuttle
9,000 lb. Capacity

CNC - Makino A811 Horizontal Machining Center
35" X 32" X 35"
300-Position Tool Changer
Probes, Contouring B-Axis
1000 Psi through Spindle Coolant
16-Pallet Dual-Layer Cell System

CNC - Cincinnati Lancer 1250 Vertical Machining Center
50" X 30" X 25”
30-Position Tool Changer
Scales, through Spindle Coolant, Probes

Horizontal Boring Mills
5" Devlieg NC Horizontal Boring Mill
60" X 72"
Scales, Positioning Control

4" Devlieg NC Horizontal Boring Mill
60" X 50"
Scales

Lathes

CNC - G&L Vertical Turning Lathe
84" Swing - 48" Ram Travel
12-Position Tool Changer
Tool Probe, Part Probe
Movable Cross-Rail
20-Ton Part Capacity

CNC - New Century Vertical Turning Lathe
60" Swing, 40" Ram Travel
12-Position Tool Changer
Tool Probe
Movable Cross-Rail
10-Ton Part Capacity

CNC - Mazak Vertical Turning Lathe
57" Swing Diameter
16-Position Tool Changer
Maximum Workpiece Weight 15,400 lbs.
Movable Cross-Rail, Equipped with 2-Pallet Workpiece Shuttle System

CNC - Nakamura Sc-300 Horizontal Lathe
10" X 48"
Live Tooling
High-Pressure Coolant
Tool Probe
Part Unloader
Automatic Tailstock

CNC - Cincinnati Milacron Horizontal Lathe
24" Chuck X 144" Turning Length
36" Chucking Capacity

CNC - Cincinnati Milacron Horizontal Lathe
18" Chuck X 100" Turning Length
Tool Probe

CNC - Cincinnati Milacron Horizontal Lathe
12" Chuck X 80" Turning Length
Tool Probe

Engine Lathes up to 25" X 120"
Turret Lathe 5" Bar Capacity

Inspection Equipment

CNC LK G80KC Coordinate Measuring Machine
Solid Model Import and Programming
Capability 120" X 80" X 60"
30,000 lb. Capacity

Sheffield Apollo Coordinate Measuring Machine
Capability 40" X 48"
3,000 lb. Capacity

Temperature-Controlled Metrology Room
Federal Electronic Leveling System
Renishaw Ball Bar Machine Inspection Hardware and Software
Hammar Spindle Alignment Laser and Software

Toolroom

Mills: Vertical and Production
Drill Press
Bandsaws to 36"
Hone
Welding: Arc, OX-ACT, TIG
Keyway Cutting
Kelch CNC Tool Presetter

Assembly

12,000 sq. ft. Assembly Bays
Crane Capacity to 14 tons
High-Pressure Hose Assembly
Electrical Panel Building
Electrical Cable Assembly
Hydraulic Tube Bending
Sub-Assembly Area

Precision Grinding

CNC OD Grinders to 22" X 96"
ID Grinders to 40"
Universal Grinders to 18" X 72"
Surface Grinders to 24" X 50”

Additional Services

Paint Shop
Sand Blasting
Custom Packaging and Crating Shop
Part Cleaning and Deburring

Plant

Modern One-Story Brick and Block
Epicor MRP Manufacturing Software
Well-Lighted, Epoxy Floors
Total Building - 100,000 sq. ft.
30 Minutes from Cleveland Hopkins International Airport
Central to Logistical Resources - Train Lines, Lake Erie Barges, Ohio Turnpike (I-80) and Major Highways

Engineering Tools

Autodesk Inventor Professional 2017 3D Solids
Master CAM 2017 Lathe and Mill 3D Solids Package
Networked PC System
DNC Communication to Machining Centers
TDM Systems Tool Management Software

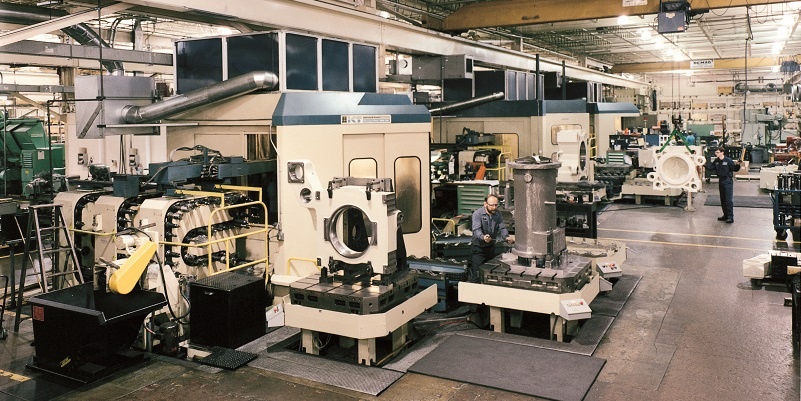

 Bardons-Equipment-List-Machine-Shop



Bardons & Oliver’s delivers quality—in spec and on time.

Our machining capabilities, additional services, and technical knowledge, will improve your company’s efficiency.
